Whether you are an experienced engineer or a novice, you must follow some unchanged rules to make good mechanical design. If you do not obey them, you will be sentenced to the fire and curse of eternal hell. In any case, or you will find that you have to redesign and pull out a lot of redemption. Therefore, prepare your stele, raise your eyes to heaven, and get some suggestions from the saints from the engineer master.



1. You should start simple

Have you heard of the abbreviation of kiss? It represents Keep It Simple, Stupid. It is also good for the early stages of mechanical design. In fact, just grab your pencil, ruler and some waste paper, and then start making rough sketches. This is the opportunity to get all ideas in 2D projection format or projection projection, which is unrelated. This is just the basic starting point you designed, so don't be too nervous!





2. You should not pay attention to the form

The key to good mechanical design is to ensure his practicality. Yes, but if you start considering aesthetics in the early days, it is easy to come up with a completely failed design work.

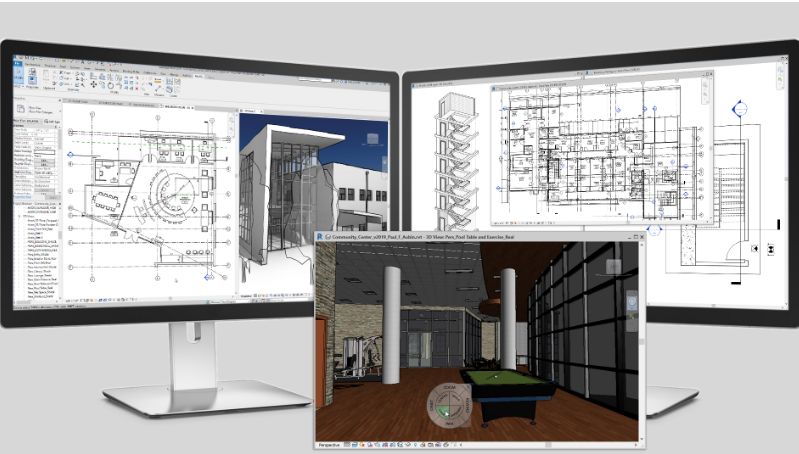

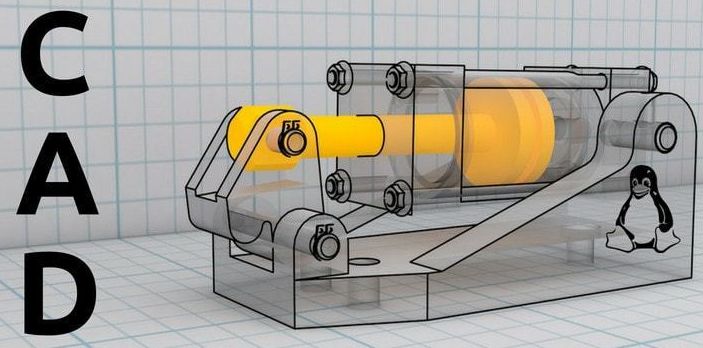

3. Understand your CAD

After getting some hand -painted ideas, it is time to start the computer and get digitalization. Whether you use Solidworks or AutoCAD, you need to use the software at least at the intermediate level. If your foundation is not very good, then learn a course. There are many relatively cheap electronic learning courses on websites like Udemy. If you are a bit sparse, it will quickly let you learn to accelerate.





4. Pay attention to the relationship between parts

When designing works, make sure to pay close attention to possible interactions or relationships between components. For example, to ensure that screw components do not interfere with motion components. Use these functions correctly in the early stages of design, you can save a lot of trouble when you try to redesign.



5. Consider environmental protection

In this era, it is very important to design environmentally friendly mechanical components. Responsible for material selection, efficiency and durability. All of this will increase your design.



6. Make it beautiful

Fortunately, you can transfer your attention to the aesthetics of design. There is no reason to say that mechanical design is not attractive. Just like the Victorian engineers, they created a beautiful and practical mechanical system. It is a very successful thing to turn huge metal blocks into elegant and smooth motion component systems.



Coordination, beautiful! (The ultimate problem of design is aesthetic issue).



7. Record your thoughts

Stay down each of the main considerations and prove every change you have made. To a certain extent, you must show your design to one or more persons, and have a logical account with your design selection and revision will help prove the rationality of the design element.





8. Show your design correctly

Make sure all the correct design standards and demonstration requirements are used. If your size display is incorrect, it may not seem to be a big problem, but it will make you look less professional. If the design briefing requires specific demonstration functions, make sure to include them.



9. Don't be afraid of innovation



Although we originally wanted to keep it simple, as the design progressed, you could add more complex features or innovative touch. The technological revolution means rapid changes and constantly introduce new ideas. Know the changes in your industry in a timely manner, and put forward innovative design solutions as much as possible.





10. Do a good job of inspection

Checking your design seems to be the most boring and laborious part of the process. If this is your feelings, you really need to change your point of view, because it may be its most important part. Develop the habit of checking at any time, use common sense, repeat and check the size accuracy. When you reach the appropriate point of the design, leave and do some other things for at least a few hours, and then return to the design with fresh eyes. This will help you check more objectively and accurately. Also, make sure others check your job. Don't try to skip this part.
