The types and selection calculations of bearings are all here

1.Types of bearings

Bearings are an important component in mechanical engineering, widely used in various mechanical equipment, such as mechanical equipment, machine tools, automobiles, motors, etc. There are various types of bearings, and according to different application scenarios and performance requirements, bearings can be divided into various types, such as deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, and thrust roller bearings.

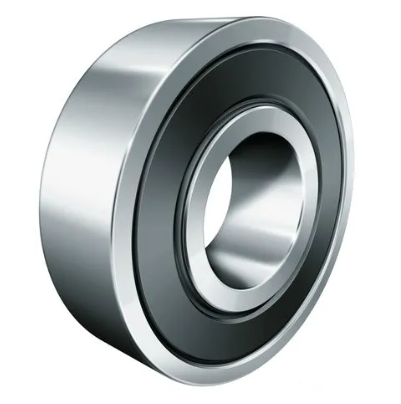

1. Deep groove ball bearing

Deep groove ball bearing is a type of bearing with a compact structure, low friction coefficient, and suitable for high-speed operation. Its characteristic is that the outer ring raceway is spherical in shape, with automatic centering performance, suitable for precision assembly of two or more units. Its structure is simple, easy to use, and it mainly bears radial loads, but can also withstand axial loads in any direction, with a wide range of applications.

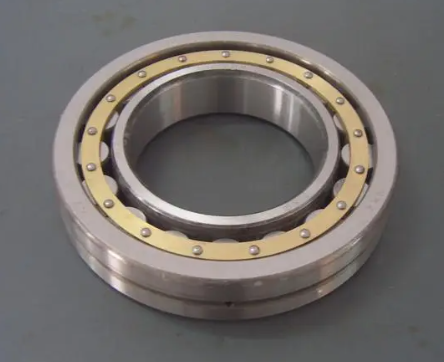

2. Cylindrical roller bearings

Cylindrical roller bearings can provide high load-bearing capacity in both radial and axial directions, and are suitable for high-speed operation due to their low friction coefficient. Its characteristic is the ability to automatically adjust the center, which can withstand combined radial or axial loads, and can withstand large axial loads. It is suitable for applications where the axial size allows for large radial displacement and shaft tilt, as well as applications with high requirements for noise and rigidity.

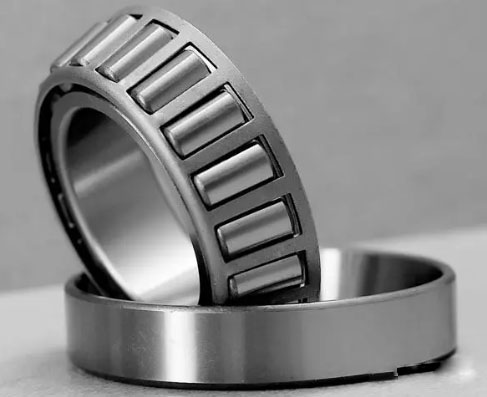

3. Tapered roller bearing

Tapered roller bearings are suitable for bearing heavy and impact loads, precision instruments, rotating parts of high-speed machine tools, large motors, instruments, and gearboxes. Its characteristics are small friction coefficient, high limit speed, strong ability of bearing to withstand large loads, high requirements for machining accuracy of shafts or seat holes, and structural design with clearance adjustment mechanism, so it has centricity.

4. Angular contact ball bearing

Angular contact ball bearings can withstand both axial and radial loads simultaneously. It is suitable for high-speed rotation, high-precision rotation, transmission of large torque torque, and bearing vibration or impact loads caused by yaw under radial and axial loads. Its characteristic is that it has a combined axial and radial load capacity, suitable for bearing composite or radial loads, with low friction coefficient and high rotational speed, especially suitable for working conditions with high rotational speed and high impact loads.

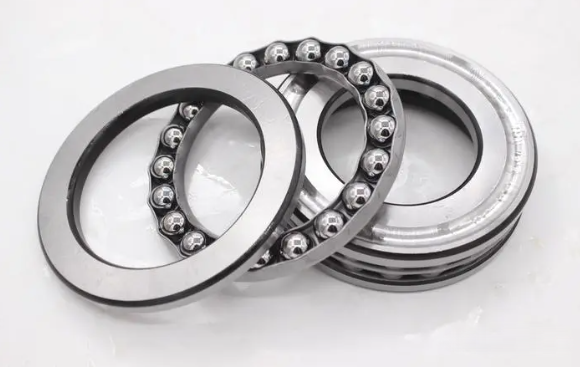

5. Thrust ball bearing

Thrust ball bearings are rolling parts that support rotating shafts or individual components and maintain small clearance with them. Its characteristic is that it can withstand large loads, has a simple structure, works reliably, and has low starting friction, but can only withstand unidirectional loads.

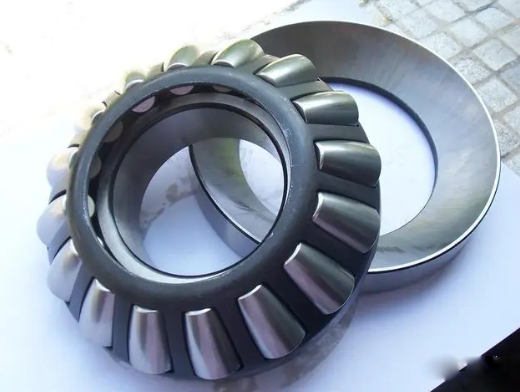

6. Thrust roller bearing

The thrust roller bearing is composed of a thrust cylindrical roller or a tapered roller and an inner ring supporting the needle roller. The needle roller is paired with the needle roller or the guide sleeve between the cylindrical roller and the tapered roller is used in contact. Its characteristics are high load-bearing capacity, low friction coefficient and temperature rise, and ability to adapt to higher rotational speeds and temperatures.

2、 Bearing selection principles

When selecting bearings, it is necessary to choose the appropriate bearing type based on the specific usage environment and conditions of the equipment. Generally speaking, the following principles should be considered when selecting models:

1. Load nature and size: Select the appropriate bearing type based on the actual force situation of the equipment. Generally speaking, deep groove ball bearings and thrust ball bearings are suitable for bearing radial loads, while angular contact ball bearings are suitable for bearing comprehensive loads.

2. Speed: Different bearing types have different restrictions on speed. Generally speaking, deep groove ball bearings and cylindrical roller bearings are suitable for high-speed operation.

3. Centering: For equipment that requires automatic centering function, tapered roller bearings or angular contact ball bearings can be selected.

4. Noise and vibration: For equipment with high requirements for noise and vibration, bearing types with good quietness and low vibration can be selected.

5. Lubrication method: Select a suitable lubrication method based on the lubrication conditions and requirements of the equipment. Generally speaking, grease lubrication is suitable for equipment with relatively closed environments, while oil lubrication is suitable for equipment with relatively open environments and easy replenishment.

6. Material selection: The selection of materials for the inner and outer rings of bearings, rolling elements, and cages is also very important. Choosing appropriate materials based on the actual working environment and requirements of the equipment can extend the service life of bearings and improve their reliability.

3、Summary

In summary, there are various types of bearings, each with its unique performance and application scenarios. When selecting bearings, it is necessary to choose the appropriate bearing type based on the actual usage environment and conditions of the equipment. Generally speaking, when selecting a model, factors such as load nature and size, rotational speed, centricity, noise and vibration, lubrication method, and material selection should be considered. The correct selection can ensure the normal operation and service life of the equipment, so the issue of bearing selection cannot be ignored.
